| Наименование марки: | Optowix |
| Номер модели: | МТ1МТ2МТ2МТ2МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3МТ3М |
| МОК: | 10 шт |
| Условия оплаты: | T/T. |
| Способность к поставкам: | 10Kpcs |
| Attribute | Value |
|---|---|

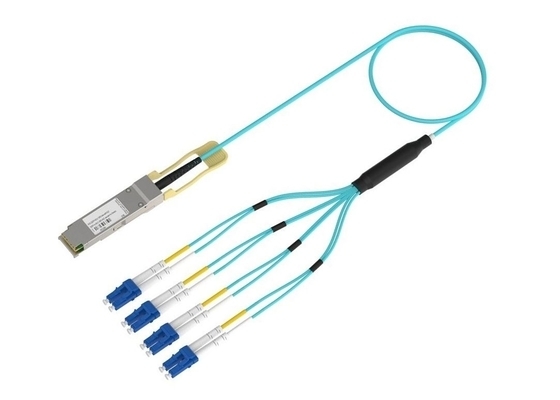

| Product Name | QSFP Active Optical Cable |
| Optowix PN | MT1Q-AOCxx-4DLC |
| Applications | 100G Ethernet Data Center Intra-Rack and Inter-Rack links |
| QSFP | Compliant with QSFP28 MSA |
| Part Number | Description | Color on Clasp |
|---|---|---|
| MT1Q-AOCxx-4DLC | 100G QSFP to 4 Duplex LC Breakout Active Optical Cable, Length 1 ∼ 100 meters | Beige(QSFP) |
MT1Q-AOCxx-4DLC QSFP to 4 duplex LC breakout active optical cables are a high-performance, low-power, short-range interconnect solution, QSFP using full duplex optical components to 4 independent transmission and reception channels, each channel can support a transmission rate of 25.78Gbps. QSFP to 4 duplex LC breakout active optical cables are a high-performance, low-power, short-range interconnect solution, QSFP using full duplex optical components to 4 independent transmission and reception channels, each channel can support a transmission rate of 25.78Gbps.
| Parameter | Symbol | Min | Typ | Max | Unit | Remarks |
|---|---|---|---|---|---|---|
| Data Rate (Per Channel) | DR | 25.78 | Gbps | 1 | ||
| Bit Error Rate | BER | 5x105 | 2 | |||
| Operating Temperature | TC | 0 | 70 | °C | 3 | |
| Storage Temperature | TSTO | -40 | 85 | °C | 4 | |
| Input Voltage | VCC | 3.15 | 3.3 | 3.46 | V | |
| Maximum Voltage | VMAX | -0.5 | 4.0 | V | 5 |
